Traditional solar panels waste up to 80% of the sunlight that hits their surface, with most commercial panels achieving only 20-25% efficiency. This energy loss occurs because conventional flat panels can only capture direct sunlight from one angle, missing opportunities throughout the day as the sun moves across the sky. For homeowners seeking energy independence, this limits billions of kilowatt-hours of lost potential every single day.
The problem runs deeper than efficiency numbers. Flat solar panels lose energy through multiple pathways: reflection bounces away over 30% of incident light from untreated surfaces, temperature increases cause voltage drops that reduce power output, and the single-plane design can only optimize for one sun position per day. Traditional panels essentially ignore the three-dimensional nature of sunlight, treating our dynamic, rotating planet as if it were a flat, stationary surface.
3D solar technology is a revolutionary breakthrough that changes everything. These innovative systems can capture sunlight from multiple angles at once, producing more electricity than conventional flat panels within the same footprint. Unlike traditional panels that require perfect positioning and lose efficiency throughout the day, 3D solar configurations harvest energy from dawn to dusk with consistency. This breakthrough technology promises to unlock the potential of solar energy, moving us closer to complete energy independence while maximizing every square foot of available space.
What is 3D Solar Technology?
3D solar technology is a departure from traditional flat panel design, utilizing three-dimensional configurations to capture sunlight from multiple angles. Unlike conventional photovoltaic panels that lie flat on rooftops and can only absorb light from one direction, 3D solar systems extend solar cells upward in cubes, towers, or complex geometric arrangements that can capture sunlight throughout the day as the sun moves across the sky. This approach transforms solar energy from a single-plane collection system into a volumetric energy conversion technology.
The core scientific principle behind 3D solar technology centers on maximizing photon absorption through geometric optimization. When photovoltaic cells are stacked in three-dimensional configurations, they create more surface area and provide photons with multiple opportunities to bounce around within the structure before being absorbed. This design increases the probability that incoming light will be converted to electricity rather than reflected away or lost. The vertical surfaces of 3D structures prove effective during morning and evening hours when the sun sits low on the horizon – times when traditional flat panels perform poorly.
The development of 3D solar technology emerged from research at the Massachusetts Institute of Technology, where researchers discovered that three-dimensional solar configurations could produce power output ranging from double to more than 20 times that of fixed flat panels with the same base area. This breakthrough became economically viable only in recent years as the cost of solar cells dropped, making the additional panels required for 3D structures financially justifiable. The timing proved perfect, as advancing manufacturing techniques and falling silicon costs aligned with growing demand for space-efficient solar solutions.
Modern 3D solar technology takes several forms, each optimized for different applications. Tower configurations stack panels vertically like high-rise buildings, while cubic arrangements create box-like structures with solar cells on multiple faces. More sophisticated designs include accordion-style structures that can be shipped flat and unfolded on-site, making them practical for remote installations or temporary deployments. Some researchers have explored complex geometries with dimpled or curved surfaces, though computer modeling shows these offer only 10-15% improvement over simpler cubes while being more difficult to manufacture. Each configuration represents a balance between energy capture efficiency, manufacturing complexity, and practical installation requirements.

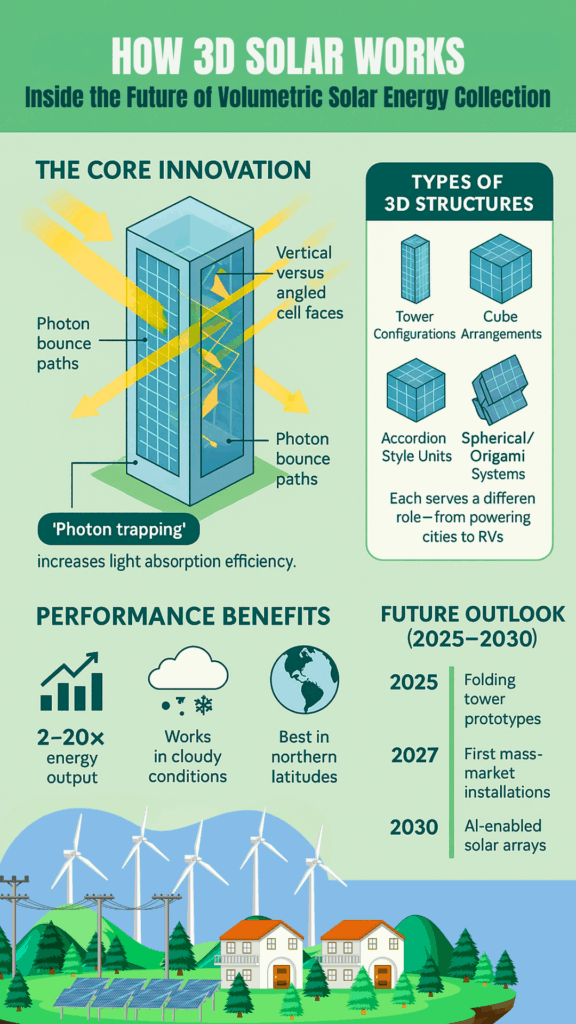

How 3D Solar Technology Works
Traditional solar panels are limited by their flat design, capturing sunlight effectively only when the sun is at the right angle. 3D solar technology addresses this by using vertical and multi-surface structures to maximize exposure throughout the day.
The Core Innovation:
- Photovoltaic cells arranged in three-dimensional configurations
- Multiple surfaces capture sunlight from various angles
- Vertical surfaces harvest low-angle morning and evening light
- Tower and cube structures create “photon trapping” environments
The layered structures in 3D solar cells create a labyrinth for light to travel through. This ensures that even diffuse or reflected light is harnessed rather than lost. The design maximizes what researchers call “photon absorption probability” giving each ray of sunlight multiple opportunities to be converted into electricity.
Performance Advantages:
- 2-20 times more power output than flat panels
- Consistent energy generation throughout the day
- Superior performance during winter months
- Enhanced efficiency on cloudy days
Photovoltaic Cell Arrangement in 3D Systems
Unlike conventional flat installations, 3D solar technology stacks photovoltaic cells in cubes, towers, or accordion-like structures. Each configuration serves specific applications and installation requirements.
Tower Configurations:
- Cells stacked vertically like high-rise buildings
- Optimal for locations with limited ground space
- Excellent for capturing low-angle sunlight
Cubic Arrangements:
- Solar cells mounted on multiple faces of a cube structure
- Balanced energy capture from all directions
- Suitable for residential and commercial applications
Accordion-Style Structures:
- Deployable designs that ship flat and unfold on-site
- Practical for remote installations
- Reduced transportation and installation costs
The photovoltaic arrangement maximizes the number of photons absorbed, increasing the electricity production of the entire system. Multiple surfaces work together, with each face optimized for different sun positions throughout the day.
Energy Capture Comparison: 3D vs. Traditional Panels
The performance differences between 3D and flat panel systems are most pronounced when energy generation matters most.
Traditional Flat Panel Limitations:
- Peak efficiency only when sun is directly overhead
- Rapid efficiency decline during morning and evening hours
- Poor performance in winter months at northern latitudes
- Energy loss on cloudy days
3D Solar Technology Advantages:
- Consistent power output from dawn to dusk
- Up to 20 times greater energy density per base area
- Biggest improvements in challenging conditions
- More uniform energy generation across seasons
MIT research demonstrates that 3D configurations achieve their greatest advantages in locations far from the equator, during winter months, and on cloudy days – precisely when homeowners need reliable energy production most.
Manufacturing Process Overview
3D solar technology builds upon established photovoltaic manufacturing while incorporating innovative assembly techniques for three-dimensional structures.
Manufacturing Considerations:
- Standard solar cells used in new configurations
- Simple cube designs offer 90% of complex geometry benefits
- Accordion-style structures enable flat-pack shipping
- Assembly optimized for on-site deployment
Production Benefits:
- Leverages existing solar cell manufacturing infrastructure
- Modular designs reduce shipping costs
- Simplified installation compared to tracking systems
- Scalable from residential to utility applications
Computer modeling shows that complex shapes with dimpled surfaces offer only 10-15% improvement over simple cubes. This makes straightforward geometric configurations the most practical choice for mass production and deployment.
Pros and Cons of 3D Solar Technology
Advantages of 3D Solar Technology
Superior Energy Density and Performance
3D solar technology delivers remarkable improvements in energy output per square foot of installation space. MIT research demonstrates that these systems can generate between 2 and 20 times more electricity than conventional flat panels using the same base area. This increase stems from the technology’s ability to capture sunlight from multiple angles, creating what researchers call “volumetric energy conversion” rather than traditional single-plane collection.
The performance advantages become most pronounced during challenging conditions when homeowners need reliable energy production most. During winter months, 3D solar systems maintain consistent output while flat panels struggle with low-angle sunlight. Cloudy days see similar benefits, as the three-dimensional structures capture diffuse light that would normally be lost. Northern climates and locations far from the equator experience the greatest improvements, making 3D technology particularly valuable for regions where traditional solar has historically underperformed.
Enhanced Reliability and Independence
Traditional solar installations suffer from daily and seasonal variations that complicate energy planning and storage requirements. 3D solar technology addresses this challenge by providing more uniform power generation throughout the day and across seasons. The vertical surfaces of tower and cube configurations excel at capturing morning and evening sunlight, extending the productive hours of solar generation.
This consistency translates into practical benefits for energy independence. Homeowners can rely on more predictable energy production, reducing the size and cost of backup battery systems needed for complete grid independence. The technology eliminates the need for expensive sun-tracking mechanisms while delivering superior performance, reducing initial investment and ongoing maintenance requirements.
Space Efficiency for Modern Applications
Urban environments and properties with limited roof space benefit from 3D solar’s compact footprint. While traditional installations require large roof areas or ground space to generate meaningful power, 3D configurations concentrate energy production into smaller areas. This space efficiency makes solar viable for applications previously considered impractical, including urban parking lots, commercial buildings with limited roof space, and residential properties with shading or structural constraints.
The modular nature of 3D systems also enables creative installations that integrate with existing infrastructure. Accordion-style deployable structures can be installed in temporary locations or areas where permanent mounting isn’t feasible, expanding the applications for solar energy generation.
Disadvantages and Current Limitations
Higher Initial Investment and Manufacturing Complexity
3D solar technology requires more photovoltaic material per installation compared to equivalent flat panel systems. While the energy output per base area increases, the total number of solar cells needed also rises by factors of 1.5 to 4 times, depending on the configuration. This material requirement translates directly into higher upfront costs, making 3D systems more expensive per watt generated than conventional installations.
Manufacturing complexity adds additional cost burdens. Creating three-dimensional structures requires more sophisticated assembly processes, specialized mounting hardware, and quality control measures beyond those needed for flat panels. Transportation and installation costs also increase due to the larger physical size and weight of assembled 3D systems, though innovations like flat-pack accordion designs help reduce these challenges.
Limited Commercial Availability and Technical Maturity
Current 3D solar technology remains in research and development phases, with limited commercial products available for widespread deployment. Most installations exist as pilot projects or research demonstrations rather than production-ready systems that homeowners can readily purchase and install. This limited availability means that interested consumers have few options for implementing 3D solar solutions today.
The technology also lacks the decades of real-world performance data that support conventional solar investments. Long-term durability, maintenance requirements, and degradation patterns for 3D structures remain largely theoretical, creating uncertainty for homeowners making financial commitments. Installation expertise is similarly limited, with few contractors experienced in 3D solar deployment and maintenance.
Integration and Compatibility Challenges
Existing electrical infrastructure, permitting processes, and installation standards were developed for conventional flat panel systems. 3D solar installations require custom electrical designs, specialized inverter configurations, and modifications to standard mounting approaches. Local building codes and utility interconnection requirements may not address three-dimensional solar structures, complicating or delaying installation approvals.
The physical characteristics of 3D systems also create challenges. Wind loading, snow accumulation, and structural requirements differ from flat installations, requiring careful engineering analysis for each application. Maintenance access becomes more complex with vertical surfaces and multi-level structures, increasing long-term service costs and complexity.
Types of 3D Solar Configurations
Tower and Vertical Installations
Solar towers are the most straightforward approach to three-dimensional energy capture, arranging photovoltaic panels in vertical stacks that resemble urban skyscrapers. These configurations excel at capturing low-angle sunlight during morning and evening hours when traditional flat panels perform poorly. MIT researchers found that simple tower arrangements can produce double to 20 times more energy than flat installations with the same base area, benefiting locations far from the equator and during winter months.
Tower installations prove valuable for urban environments where ground space is limited. The vertical orientation allows for installation in parking lots as electric vehicle charging stations, commercial spaces with minimal roof area, and residential properties with shading constraints. The compact footprint makes towers practical for retrofitting existing infrastructure without requiring extensive structural modifications.
Cubic and Geometric Designs
Cubic solar configurations mount photovoltaic panels on multiple faces of geometric structures, creating systems that capture sunlight from multiple directions. Research demonstrates that simple cube designs offer 90% of the performance benefits achieved by complex geometric shapes while remaining easier to manufacture and install.
These geometric arrangements provide balanced energy capture throughout the day as different faces optimize for various sun positions. The modular nature of cubic systems enables scalable installations from residential applications to utility-scale projects. Computer modeling shows that while complex shapes with dimpled or curved surfaces can offer 10-15% additional performance, the manufacturing complexity rarely justifies the marginal gains for most practical applications.
Spherical Solar Collectors and Origami-Inspired Structures
Spherical solar technology takes a different approach, using transparent spheres filled with water or oil to concentrate sunlight onto small photovoltaic collectors positioned at focal points. Companies like Rawlemon have developed spherical systems that can concentrate sunlight up to 10,000 times, producing energy even from moonlight and diffuse light on cloudy days. These systems require only 25% of the photovoltaic material compared to traditional panels while generating more power per unit area.
Origami-inspired structures, pioneered by NASA for space applications, use ancient Japanese folding techniques to create deployable solar systems. The Miura fold pattern allows large solar arrays to compress into compact packages for transportation, then unfold with minimal effort at installation sites. When folded, these accordion-style systems can reduce to less than one-ninth their deployed size, making them ideal for remote installations, emergency deployments, and temporary power needs. Recent commercial applications include portable panels for recreational vehicles and marine applications that fold down to protect against weather damage when not in use.
Applications for Each Configuration Type
Tower configurations serve urban and commercial applications where vertical space is available but horizontal area is constrained. They work particularly well for parking lot installations, commercial building integration, and locations requiring minimal ground footprint disruption.
Cubic and geometric designs excel in residential applications where balanced daily energy production is desired. Their predictable performance characteristics make them suitable for grid-tied systems and battery storage applications requiring consistent charging patterns.
Spherical collectors offer unique advantages for architectural integration and decorative installations where aesthetics matter as much as performance. Their ability to function in low-light conditions makes them valuable for climates with frequent cloud cover or limited direct sunlight.
Origami-inspired systems address mobility and temporary power needs, serving military applications, disaster relief operations, recreational vehicles, and marine installations. Their portability and weather protection capabilities make them ideal for applications requiring periodic deployment and storage.
The Future of 3D Solar Technology
The Next Solar Revolution: What’s Coming
2025-2030 Timeline: From Lab to Living Room
The future of 3D solar technology is accelerating faster than most homeowners realize. By 2030, experts predict cost reductions as manufacturing processes mature and economies of scale kick in. Smart grid integration is the most transformative development, allowing 3D solar systems to communicate with utility networks in real-time, automatically optimizing energy production and storage based on demand patterns and weather forecasts.
Research breakthroughs currently in development promise to address current limitations. MIT and other leading institutions are perfecting new folding mechanisms that could reduce shipping costs by 75%, while advanced materials research is creating lighter, more durable structures that maintain the performance advantages of today’s prototypes. The integration of artificial intelligence into 3D solar systems will enable predictive maintenance and automatic repositioning for optimal energy capture throughout the day.
Mass Adoption Reality Check
Current projections suggest limited commercial availability by 2027, with widespread residential deployment likely by 2032. The timeline depends heavily on solving manufacturing scalability challenges and developing standardized installation procedures. However, falling solar cell costs and increasing demand for space-efficient energy solutions in urban environments create strong market drivers for accelerated development.
Environmental Impact
3D solar technology faces an environmental challenge: higher material requirements during manufacturing create a larger initial carbon footprint compared to traditional panels. Studies show that 3D systems require 1.5 to 4 times more photovoltaic material, translating to manufacturing emissions of approximately 60-80 grams of CO2 per kilowatt-hour compared to 40-50 grams for conventional panels.
However, the environmental equation changes over the system’s lifetime. The energy density of 3D configurations means fewer installations needed to meet energy demands, reducing overall land use and infrastructure requirements. The payback period for 3D systems ranges from 2-4 years, after which they provide decades of carbon-free energy generation.
Recycling and Circular Economy Potential
3D solar technology offers advantages for end-of-life management. The modular nature of tower and cube configurations enables easier disassembly and component recovery compared to traditional panel installations. Over 90% of materials used in 3D systems can be recycled, including aluminum frames, silicon cells, and glass components. The compact, geometric designs facilitate the development of automated recycling processes for the solar industry’s upcoming waste challenge.
Carbon Impact Comparison
Despite higher manufacturing emissions, lifecycle analyses show 3D solar systems produce 12-20 times fewer carbon emissions than natural gas and coal-powered electricity. The concentrated energy production of 3D configurations reduces the carbon footprint per kilowatt-hour generated compared to the larger number of traditional panels needed to produce equivalent energy output.
Net Environmental Gain
3D solar technology shows a net positive environmental advancement. While manufacturing initiallly requires more materials, the improved energy density, reduced land use requirements, and enhanced recycling potential create strong sustainability advantages. As manufacturing processes transition to renewable energy sources, the environmental benefits will only increase, making 3D solar a key technology for achieving energy independence while minimizing ecological impact.
The Next Dimension of Solar Power
3D solar technology highlights a shift in renewable energy capture, offering 2-20 times greater power output than traditional flat panels while requiring less installation space. The ability to harvest energy from dawn to dusk, perform exceptionally during challenging weather conditions, and eliminate the need for expensive tracking systems positions this technology as a game-changer for true energy independence. Current limitations, including higher material costs, limited commercial availability, and the need for specialized installation expertise mean widespread adoption remains several years away.
For homeowners ready to embrace energy independence today, the path forward is clear. While 3D solar technology matures, proven solar solutions can immediately reduce your electricity bills and carbon footprint. The future of renewable energy innovation has never been more promising. As 3D solar technology evolves from research laboratories to rooftops across the world, we’re witnessing the dawn of an energy revolution that will transform how we power our lives. Contact 8MSolar today to take the first step toward energy independence—because the best time to start your solar journey is now, with tomorrow’s innovations building upon today’s proven solutions.
